Description

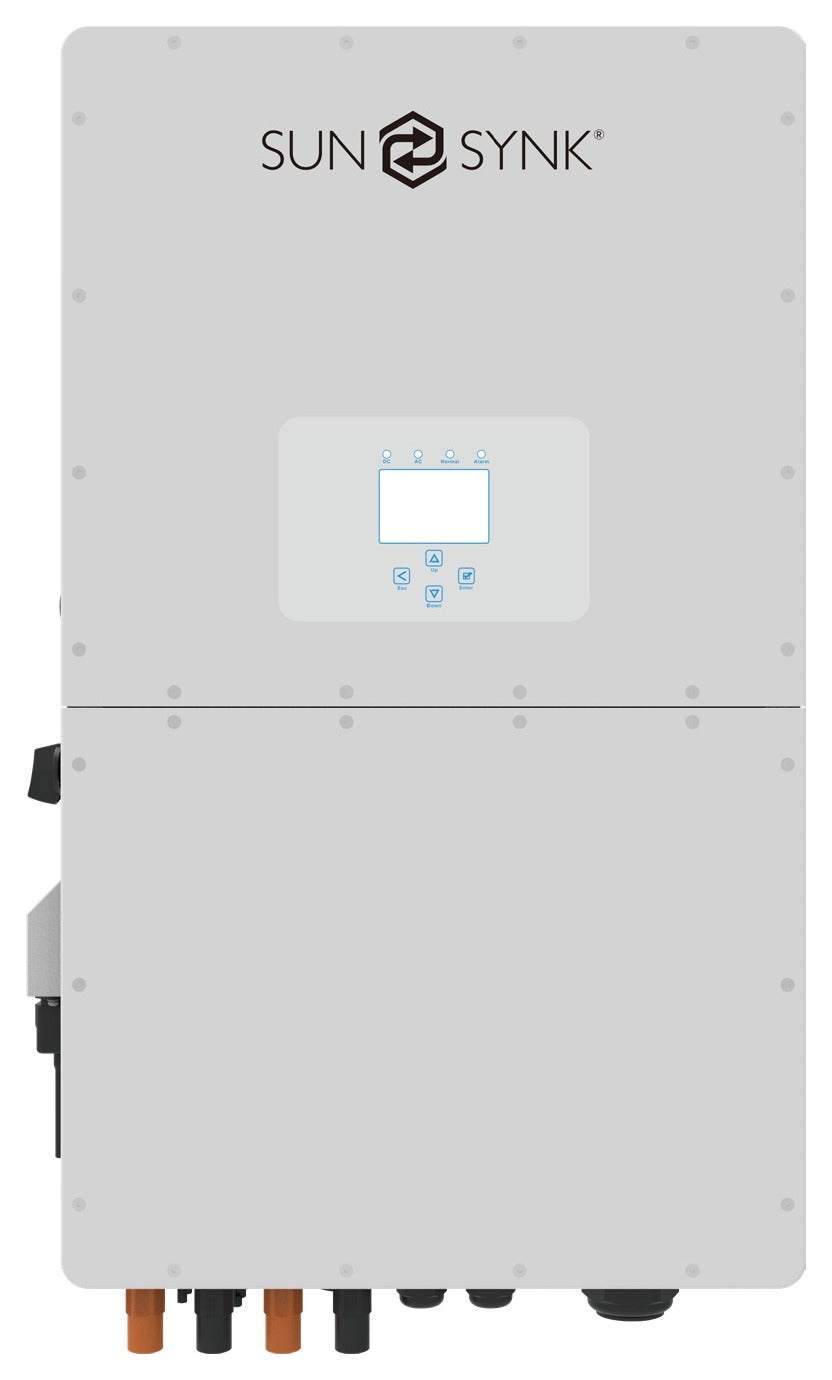

The Sunsynk 30kW HV Three Phase Hybrid Inverter (SUNSYNK-30K-SG01HP3-EU-BM3, G02 version 2) is a 30kW three-phase high-voltage hybrid inverter for commercial and large residential energy storage in South Africa.
- Rated AC output 30,000W | max 33,000VA | peak 1.5x rated for 10s | 200A continuous AC passthrough
- Max PV input 39,000W | 3 MPPT (2+2+2 strings), 36A per MPPT | MPPT range 150-850V (full load 420-850V), max 1000V
- HV battery 160-800V, 2 battery inputs, 50+50A | max charge/discharge power 33,000W
- Max efficiency 97.6% | Euro efficiency 97.0% | RS485/RS232/CAN, WiFi/GPRS/4G/LAN monitoring
- Grid code NRS 097-2-1 | noise <65dB
- IP65, suitable for indoor and outdoor installation | 527 x 894 x 294mm | 80kg (datasheet) | 5-year warranty (10 years when installed with a Sunsynk battery)
Official Datasheet: Sunsynk Three-Phase HV 29.9-50kW Datasheet
Official Product Page: Sunsynk 30kW 3P HV
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
