| Official model |

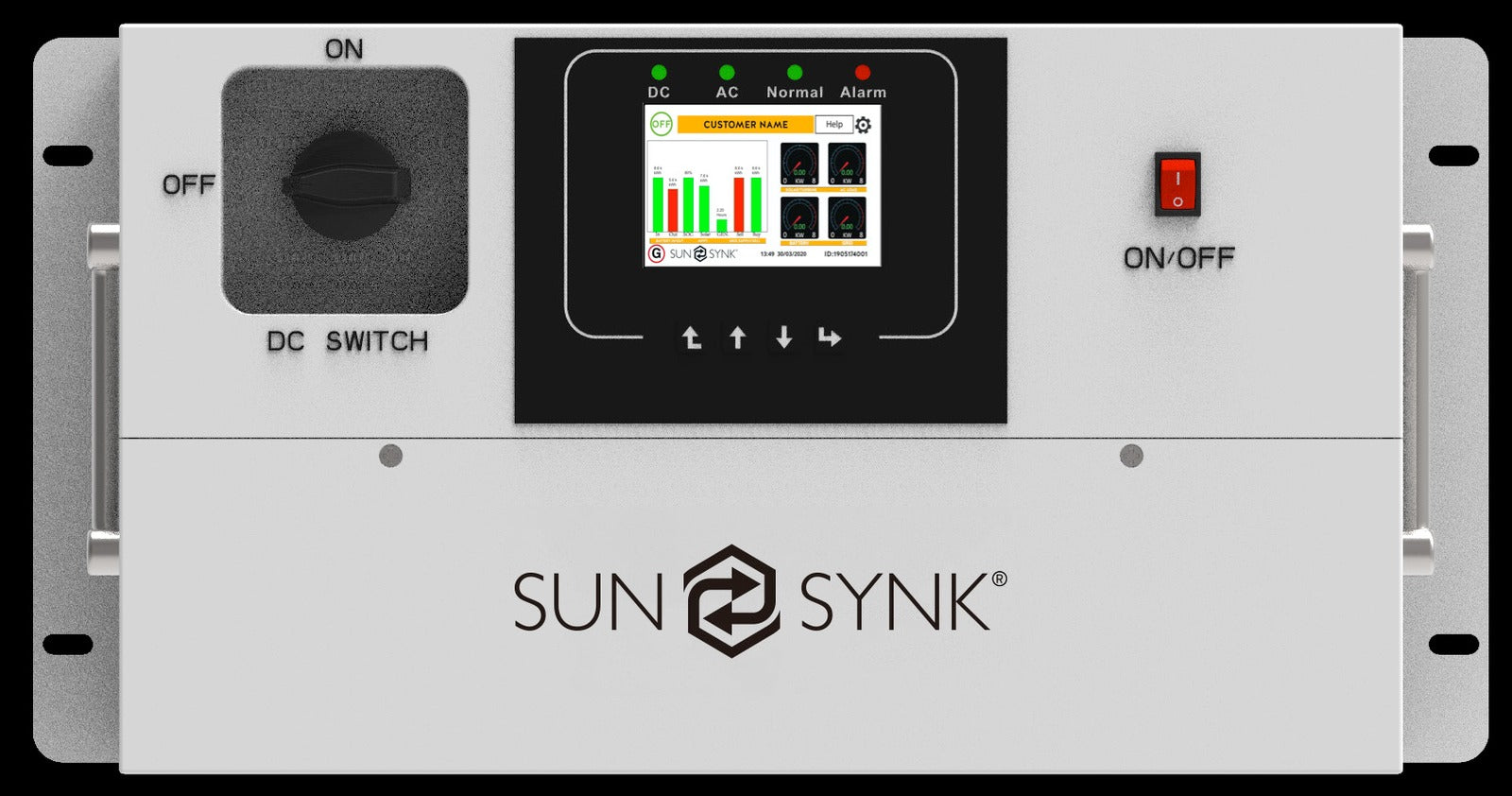

SUNSYNK-7.6K-SG02LP1 |
| Type |
Single-phase (also listed as split-phase / 2/3-phase) low-voltage rack-mounted hybrid inverter |
| Battery type / voltage range |
Lead-acid or lithium-ion / 40–60 V |
| Max. charging / discharging current |
190 A / 190 A |
| Charging curve / Li-ion strategy |
3 stages / equalisation; self-adaptation to BMS |
| Max. DC input power |
9 880 W |
| PV input voltage / MPPT range / start-up |
370 V (100–500 V) / 125–425 V / 150 V |
| PV input current / MPPTs / strings per MPPT |
22 A + 22 A / 2 / 2+2 |
| Rated AC output and UPS power |
7 600 W |
| Max. AC power |
8 360 W |
| Peak power (off-grid) |
2 × rated power for 10 s |
| AC output rated current |
31.7 A / 33 A |
| Max. AC output current |
34.9 A / 36.3 A |
| Max. continuous AC passthrough |
50 A |
| Output frequency and voltage / grid type |
50/60 Hz; 120/240 Vac (split phase), 208 Vac (2/3), 230 Vac (single phase) / split phase, 2/3 phase, single phase |
| Current harmonic distortion |
THD <3% (linear load <1.5%) |
| Max. / MPPT / Euro efficiency |
97.60% / 96.50% / 99.90% (printed as such on this official sheet; on later official Sunsynk sheets the Euro and MPPT figures are typically the other way around) |
| Operating temperature / cooling / noise |
−25 °C to 60 °C, derating above 45 °C / fan / <30 (unit as printed) |
| Communication with BMS |
RS485; CAN |
| Weight |
Not printed on the official v.11 datasheet. Live store weight 32 kg retained as a conservative estimate. Official net weight of the later wall-mounted SUNSYNK-8K-SG02LP1 is 31.9 kg and was not applied to this 7.6 kW rack-mount model. |
| Grid regulation listed |
Includes UL 1741, IEEE 1547, Rule 21, VDE 0126, AS 4777, NRS 2017, G98, G99, IEC 61683, IEC 62116 and IEC 61727 |
| Official warranty on this datasheet |
5 years; refer to Sunsynk’s current warranty terms |
