| Official model |

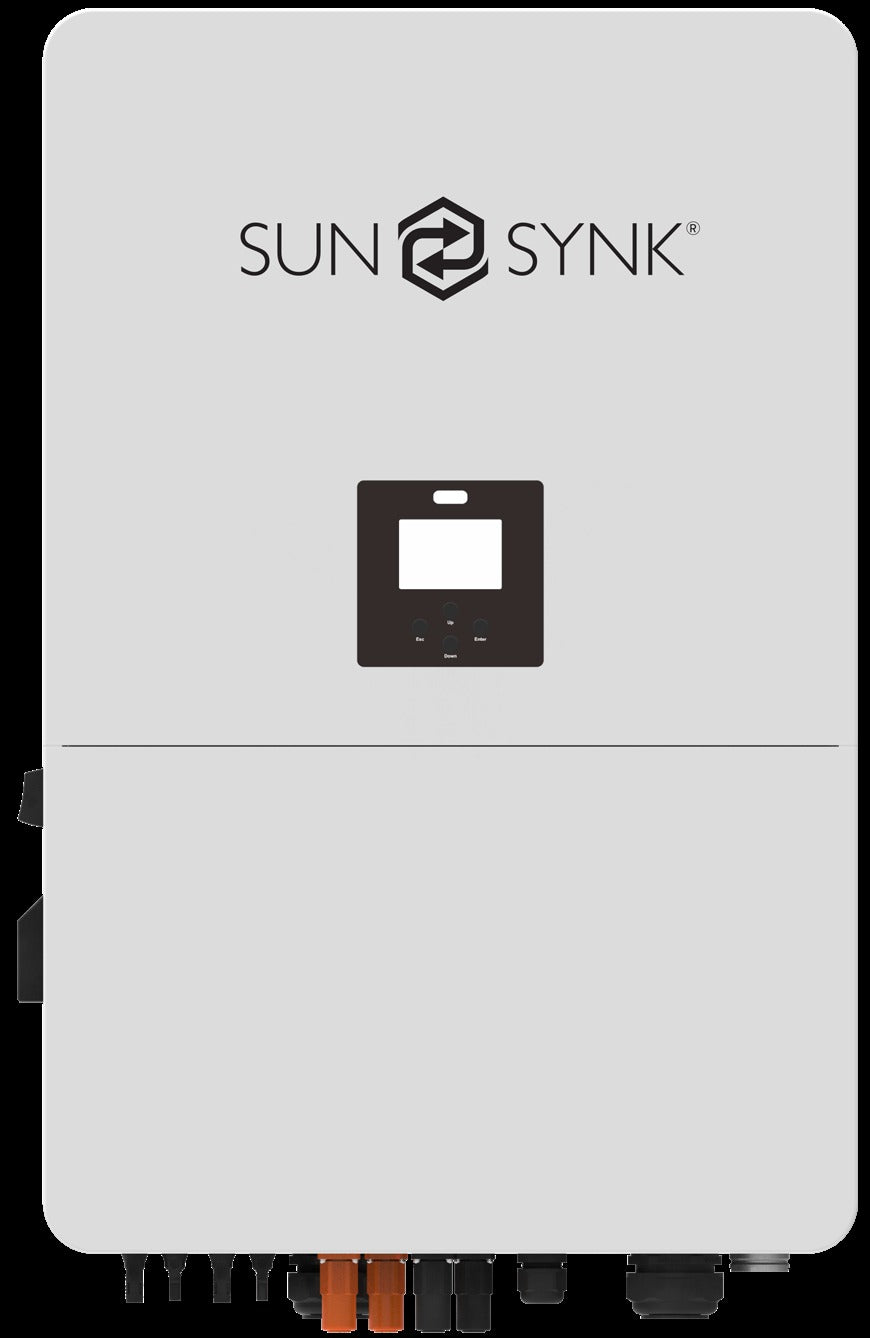

SUNSYNK-80K-SG02HP3-EU-EM6 |
| Type |
Three-phase high-voltage hybrid inverter |
| Battery type / voltage range / battery inputs |
Li-ion / 160–1 000 Vdc / 2 |
| Max. charging / discharging current |
80 A + 80 A dc / 80 A + 80 A dc |
| Max. PV access power / max. PV input power |
160 000 W / 128 000 W |
| Max. / rated PV voltage; start-up; PV / MPPT / full-load MPPT range |
1 000 V / 650 V; 180 V; 180–1 000 V / 150–850 V / 485–850 V |
| MPPTs / strings per MPPT |
6 / 2+2+2+2+2+2 |
| Max. operating PV input current / short-circuit current |
36 A × 6 / 54 A × 6 |
| Rated AC input/output active power |
80 000 W |
| Max. AC input/output apparent power |
88 000 VA |
| Peak power (off-grid) |
1.5 × rated power for 10 s |
| Rated AC input/output current |
121.3 A / 116 A ac |
| Max. AC input/output current |
133.4 A / 127.6 A ac |
| Max. continuous AC passthrough (grid to load) |
200 A |
| Max. output fault current / overcurrent protection |
256 A / 334 A |
| Rated voltage / grid form / frequency |
220/380 V, 230/400 V (0.85 Un–1.1 Un) / 3L+N+PE / 50 Hz (45–55 Hz), 60 Hz (55–65 Hz) |
| Power factor / THDi |
0.8 leading to 0.8 lagging / <3% of nominal power |
| Max. / Euro / MPPT efficiency |
98.70% / 98.10% / >99% |
| Cabinet size (W × H × D) |
606 × 927 × 314 mm (excluding connectors and brackets) |
| Weight |
105 kg (official datasheet and official product-page net weight; official gross 118.5 kg) |
| Ingress protection / topology / cooling / noise |
IP65 / non-isolated / intelligent cooling / ≤65 dB |
| Operating temperature / altitude / humidity |
−40 °C to 60 °C, derating above 45 °C / 3 000 m / 0–100% |
| Display / communication / monitoring |
LCD+LED; RS232 / RS485 / CAN; GPRS, Wi-Fi, Bluetooth, 4G or LAN (optional) |
| Surge protection |
Type III (DC), Type III (AC) |
| Grid standard listed |
Includes NRS 097-2-1; additional connections available upon request |
| Official warranty on this datasheet |
5 years (10 years when installed with a Sunsynk battery); refer to Sunsynk’s current warranty terms |
