Description

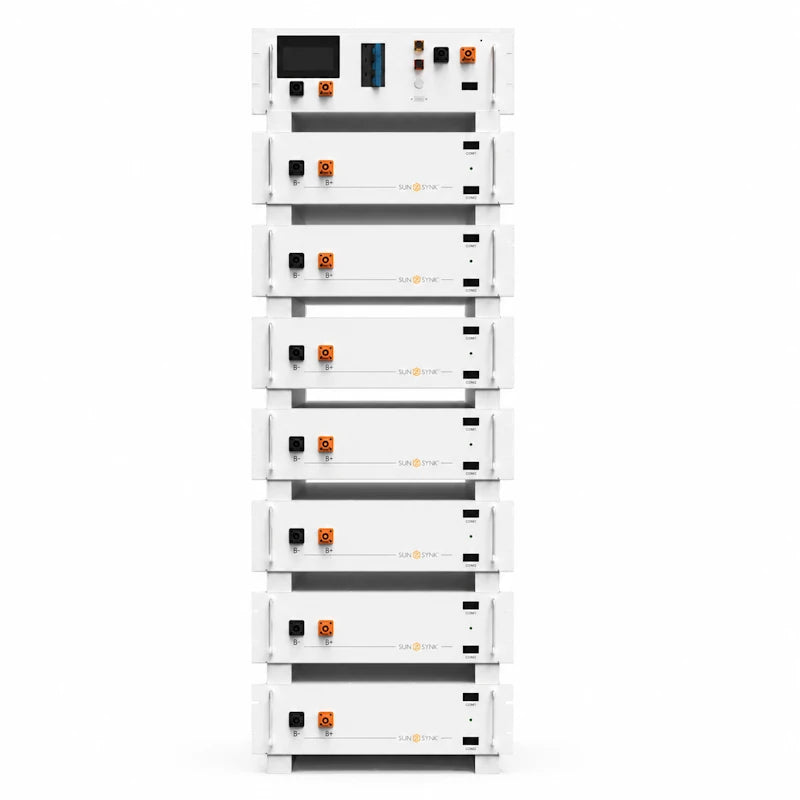

The Sunsynk HV 61.44kWh W-Series (W60) is a high-voltage LiFePO4 energy storage pack: 12 × 5.12kWh stackable white battery modules plus 1 × PDU. It is the newer W-Series stackable white system (distinct from the older GM Series G60 rack pack).
- System energy 61.44kWh | usable ≈55.3kWh (90% DoD) | rated DC power 61.44kW
- 12 × SUNSYNK-W-PACK5.1 modules + 1 × SUNSYNK-W-PDU | module 5.12kWh LiFePO4, 51.2V, 100Ah
- System nominal voltage 614.4V | operating voltage 528–700.8V
- Charge/discharge: recommended 50A, nominal 100A, peak 125A (2 min, 25°C)
- CAN 2.0 / RS485 | integrated aerosol fire suppression | cycle life ≥6000 (25±2°C, 0.5C/0.5C, EOL 70%)
- IP20, indoor / rack mounting | approx. 1060 × 602 × 1629 mm | ≈622 kg
Official User Manual: Sunsynk W-Series User Manual
Official Product Page: Sunsynk W Series Battery
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
