Mono Multi Solutions
0~+5W
MAXIMUM POWER OUTPUT POSITIVE POWER TOLERANCE
625W
MAXIMUM EFFICIENCY
23.1%
Trina Solar’s Backsheet Performance Warranty
IEC61215/IEC61730/IEC61701/IEC62716/UL61730
ISO 9001: Quality Management System
ISO 14001: Environmental Management System
ISO45001: Occupational Health and Safety Management System EU-28 WEEE COMPLIANT RECYCLABLE PACKAGING
PRODUCT: TSM-NE19R
POWER RANGE: 595-625W
High customer value
High reliability
High energy yield

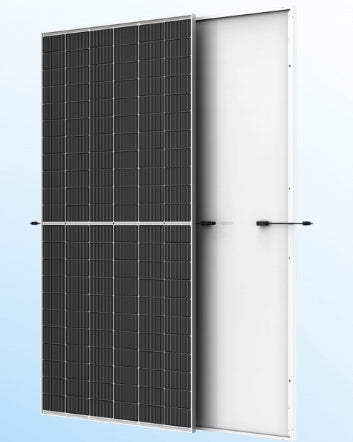

N-type i-TOPCon BACKSHEET MONOCRYSTALLINE MODULE
• Excellent compatibility with existing mainstream system components
• Minimized micro-cracks with innovative non-destructive cutting
technology and high-density packaging
• Reduced risks of hot-spot with half-cut technology
• Sustainable in harsh environments and extreme weather conditions
• Excellent low irradiation performance, validated by 3rd party
Trina standard
Guaranteed Power
90%
100%
Years 5 10 15 20 25
99.0%
89.4%
• Lower temperature coecient (-0.29%/°C)
• Standardized module size with Fagship module power, 30W higher
compared with conventional technology
• Low Voltage design with higher string power, efectively reducing BOS
(Balance of System) and LCOE (Levelized Cost of Energy) by 1%~5%
• Suitable for all scenario, especially C&I, residential, and ground
applications
• Higher container space utilization eectively reduces the freight cost
• Up to 23.1% module efciency, on 210 innovative platform
• Patented i-TOPCon technology with continuous efciency improvement,
including contact resistance reduction, rear refection enhancement and
edge quality repairment.
• Certired high resistance against salt, ammonia, sand, PID, LID, LeTID
High power up to 625W
DATASHEET
