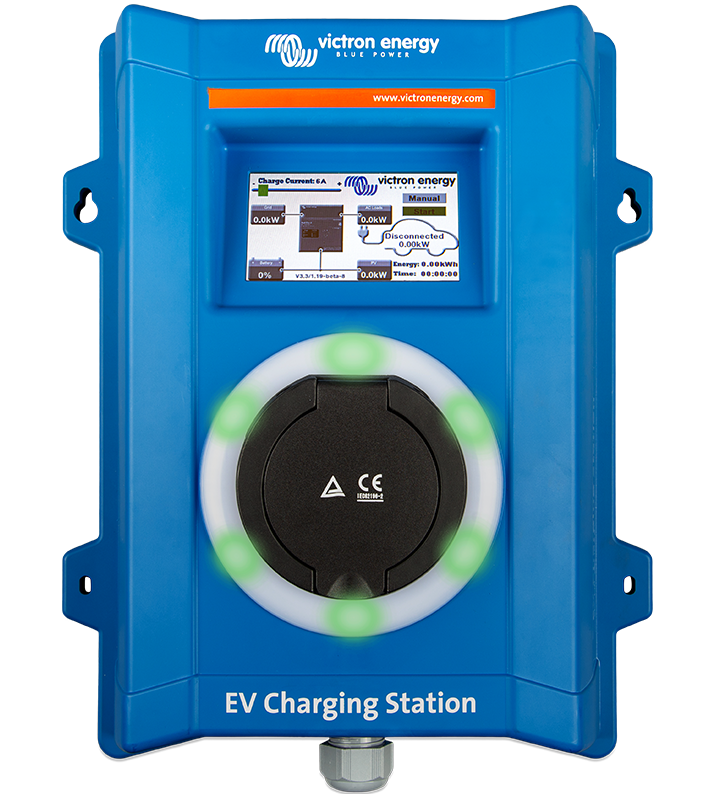

The Victron Energy EV Charging Station (EVC300400300) is a networked AC charger for Type 2 electric vehicles. It delivers up to 22 kW on three-phase or 7.3 kW on single-phase, with Manual, Automatic (excess PV) and Scheduled charging modes, plus GX / VRM integration.
Key specifications
- Part number: EVC300400300
- Nominal power: 22 kW (3-phase) / 7.3 kW (1-phase); rated charge current 32 A per phase
- Input: 170–265 V AC; configurable current 6–32 A
- Connector: IEC 62196 Type 2
- Wi-Fi 802.11 b/g/n, Bluetooth (VictronConnect), Modbus TCP; 4.3″ LCD touch screen
- Operating temperature −25 °C to +50 °C; external RCD required
Product features
- Three modes: Manual, Automatic (maximise PV self-consumption), Scheduled
- Programmable RGB light ring for charge-state indication
- Control via touch screen, web interface, VictronConnect, and GX / VRM
- Price/kWh session calculator
This product must be installed by a qualified electrician/technician. An external RCD is required. All installations must adhere to local wiring regulations and standards. Powerforum Store (PTY) LTD will not be held liable for product malfunctions as a result of incorrectly installed systems.
