Description

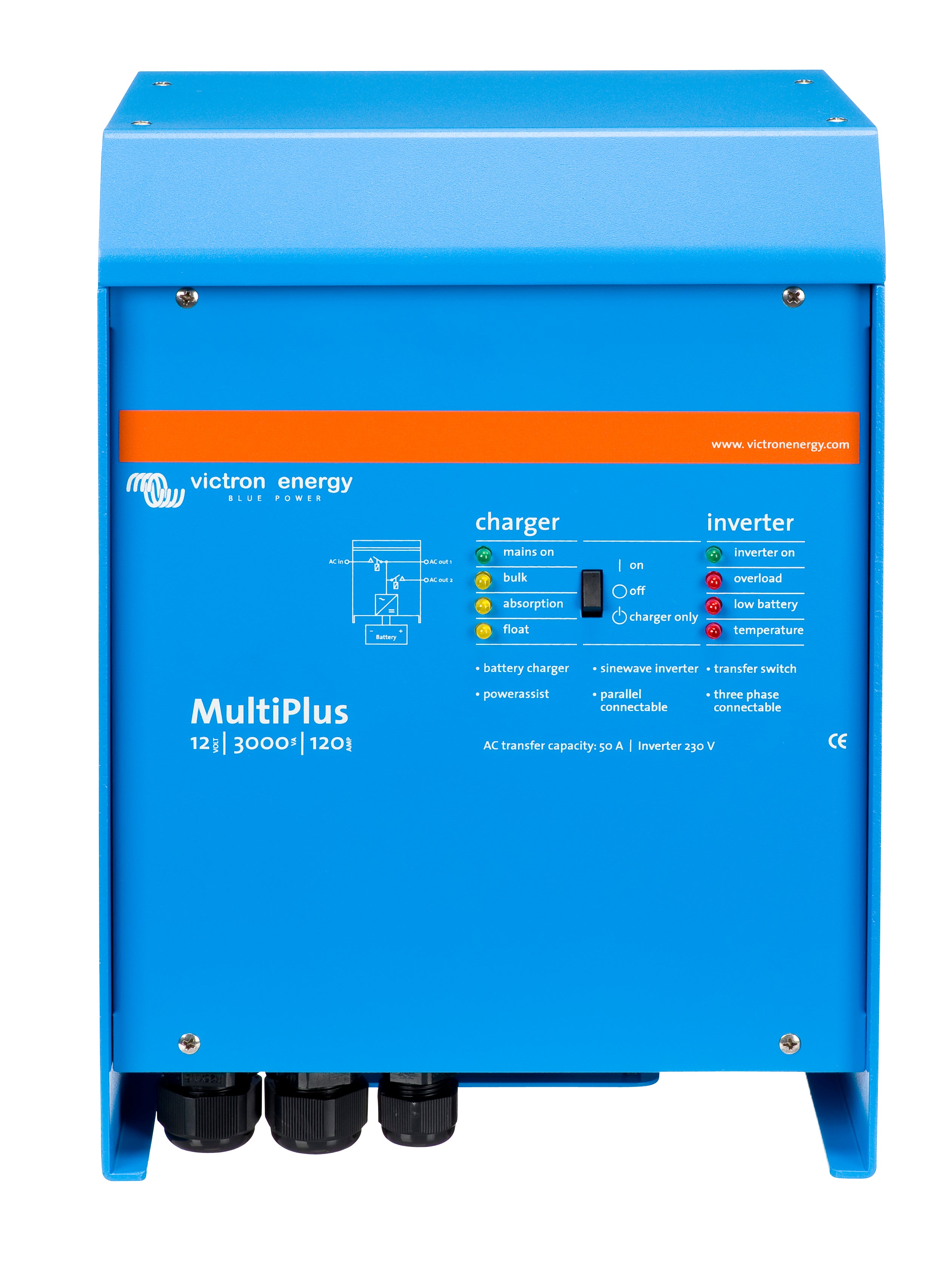

The Victron MultiPlus 12/3000/120-16 230 V VE.Bus is a 12 V inverter/charger in Victron’s MultiPlus 800 VA–5 kVA range. The official 12 V 3 kVA column on the datasheet is 12/3000/120. This listing is the 16 A transfer-switch version (the official sheet lists the 3 kVA transfer switch as 16 A or 50 A).
- Official model column: 12/3000/120 (MultiPlus 800 VA–5 kVA family)
- Continuous output at 25 °C: 3 000 VA / 2 400 W
- Charge current (house battery): 120 A (12 V model)
- AC input range 187–250 V (inverter table) / 187–265 VAC (charger table); 16 A transfer switch on this SKU
- IP20; 18 kg; 364 × 295 × 221 mm
Technical specifications (MultiPlus 12/3000/120-16)
Figures in the table are from Victron Energy’s official MultiPlus Inverter/Charger 800 VA–5 kVA datasheet (English), hosted on victronenergy.com. Values below are the 12/3000/120 column unless noted.
| Official model (datasheet column) |
12/3000/120 |
| Type |
Inverter/charger, 12 V, 230 V, VE.Bus |
| Transfer switch (this listing) |
16 A (official 3 kVA column also lists 16 A or 50 A) |
| AC input (inverter section) |
187 – 250 V; 50/60 Hz |
| DC input voltage range |
9.5 – 17 V |
| Continuous output power at 25 °C |
3 000 VA / 2 400 W |
| Continuous output power at 40 °C / 65 °C |
2 200 W / 1 700 W |
| Charge current house battery |
120 A (12 V model in the 12/3000/120 column) |
| Protection category |
IP20, pollution degree 2 |
| Material & colour |
Aluminium, blue RAL 5012 |
| Weight |
18 kg |
| Dimensions (H × W × D) |
364 × 295 × 221 mm |
| Communications |
VE.Bus, for parallel and three-phase operation, remote monitoring and system integration |
Up to three units of the same model can be configured for three-phase output, and sets can be paralleled, as stated on the official datasheet. Refer to Victron’s official warranty terms.
Official Datasheet: Victron MultiPlus 800 VA–5 kVA Datasheet (PDF, English)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
