Description

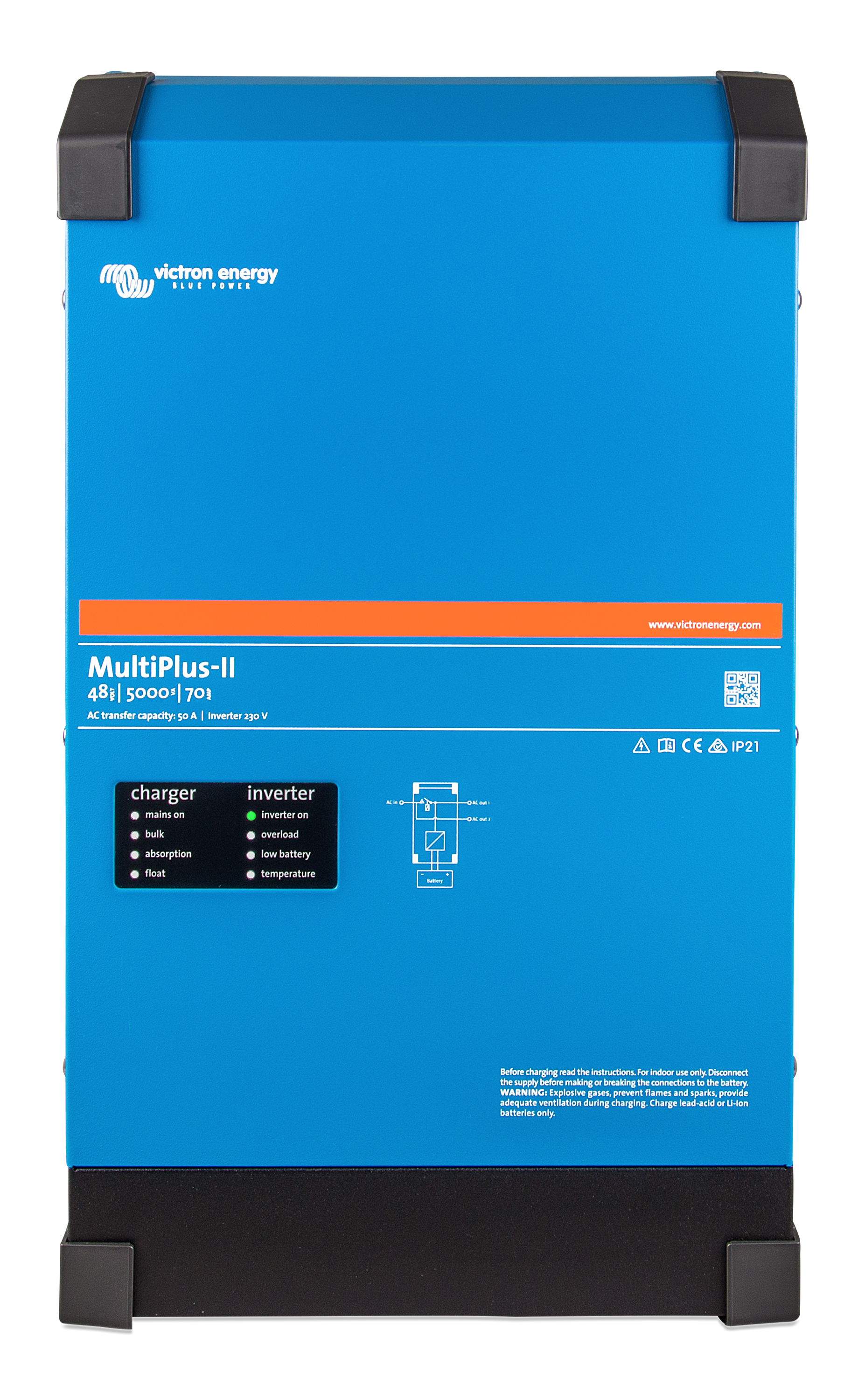

The Victron MultiPlus-II 48/5000/70-50 230V is a Victron Energy MultiPlus-II inverter/charger with ESS functionality, PowerControl and PowerAssist, and an auxiliary AC output.
- Official model: MultiPlus-II 48/5000/70-50 230 V
- Continuous output at 25 °C: 5000 VA / 4000 W; peak power 9000 W
- Transfer switch / maximum AC input current: 50 A; max. battery charge current 70 A (up to 25 °C)
- VE.Bus communication; programmable relay; remote on/off; IP22
- Official weight 30 kg; dimensions (h × w × d) 565 × 320 × 149 mm
Figures in the table are from Victron Energy’s official MultiPlus-II Inverter/Charger 230 V datasheet (Datasheet-MultiPlus-II-inverter-charger-EN-.pdf), column MultiPlus-II 48/5000/70-50. On that sheet the 5 kVA column’s weight is given as 33 / 30 / 30 kg for the 12 / 24 / 48 V models; the 48/5000 figure used here is the 30 kg 48 V value.
Technical specifications (MultiPlus-II 48/5000/70-50)
| Official model |
MultiPlus-II 48/5000/70-50 230 V |
| Type |
Single-phase inverter/charger with ESS functionality |
| PowerControl & PowerAssist |
Yes |
| Transfer switch |
50 A |
| Maximum AC input current |
50 A |
| DC input voltage range |
38 – 66 V |
| Output |
230 VAC ± 2 %, 50 Hz ± 0.1 % (adjustable to 60 Hz) |
| Cont. output power at 25 °C (non-linear, crest factor 3:1) |
5000 VA |
| Cont. output power at 25 °C / 40 °C / 65 °C |
4000 W / 3700 W / 3000 W |
| Max. apparent feed-in power |
5000 VA |
| Peak power |
9000 W |
| Maximum efficiency |
96% |
| Zero-load power / AES / Search mode |
18 W / 12 W / 2 W |
| AC input |
187 – 265 VAC, 45 – 65 Hz |
| Charge voltage absorption / float / storage |
57.6 V / 55.2 V / 52.8 V |
| Max. battery charge current (up to 25 °C) |
70 A |
| Auxiliary output |
Yes (50 A) |
| VE.Bus communication port |
Yes, for parallel and three-phase operation, remote monitoring and system integration |
| General purpose com. port |
Yes, 2× |
| Remote on-off |
Yes |
| Operating temperature / humidity / max. altitude |
−40 °C to +65 °C (fan-assisted cooling); max 95 % non-condensing; 2000 m |
| Material & colour |
Steel, blue RAL 5012 |
| Protection category |
IP22 |
| Battery connection |
M8 bolts |
| 230 VAC connection |
Screw terminals 13 mm² (6 AWG) |
| Weight |
30 kg |
| Dimensions (h × w × d) |
565 × 320 × 149 mm |
| Safety |
EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
The official MultiPlus-II 8 k, 10 k and 15 k models can only be connected in parallel if an external AC transfer switch is used; see Victron’s official MultiPlus-II External Transfer Switch application manual. Battery temperature sensor is not included with 48 V models (Victron order number ASS000001000). Warranty years are not stated on this datasheet; refer to Victron Energy’s official warranty terms.
Official Datasheet: Victron MultiPlus-II Inverter/Charger datasheet (PDF)
Official Product Page: Victron MultiPlus-II
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
