| Official model |

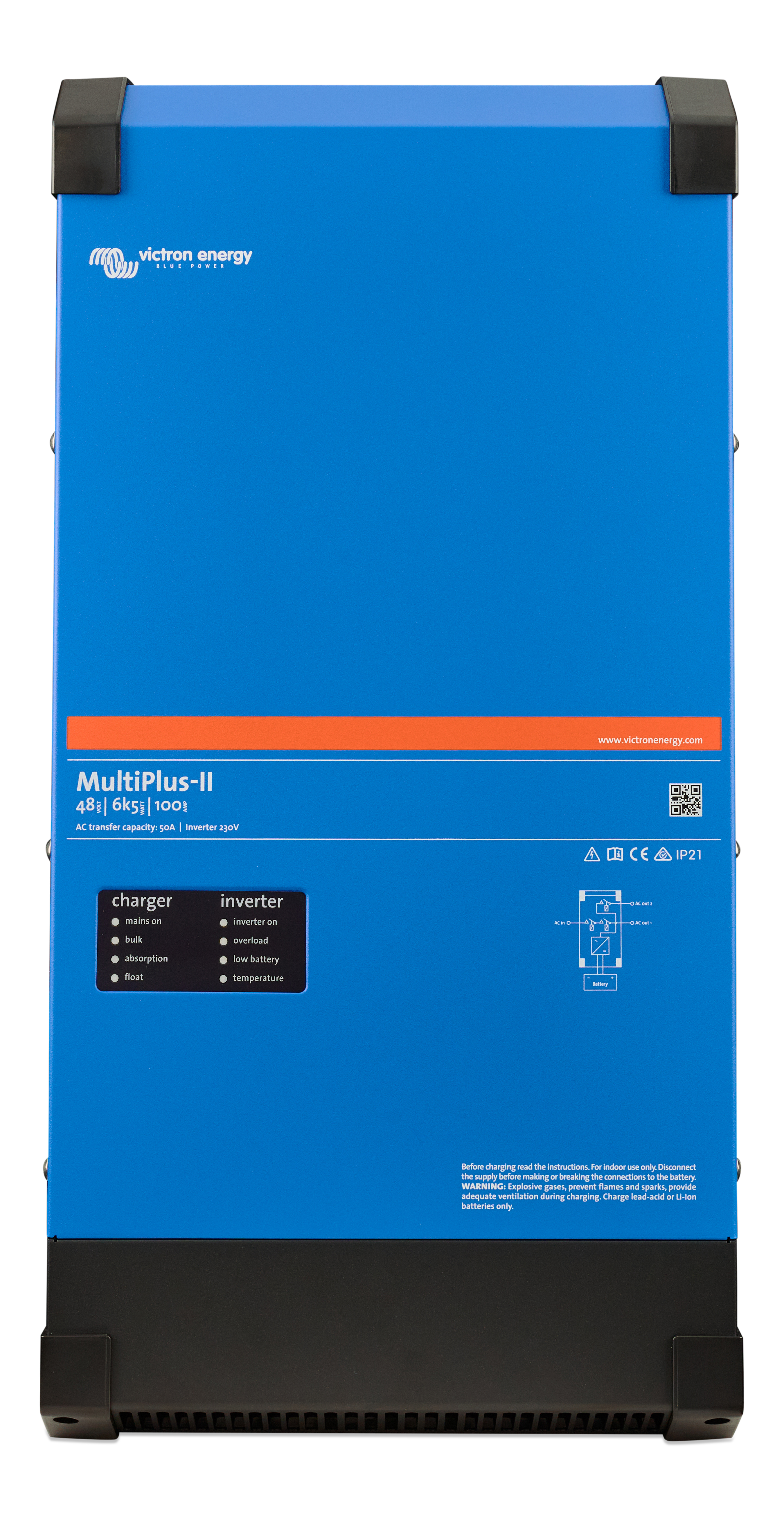

MultiPlus-II GX 48/6k5/100-50 230 V |
| Type |
Single-phase inverter/charger with integrated GX device (4k5 & 6k5 GX family) |
| PowerControl & PowerAssist |
Yes |
| Transfer switch |
50 A |
| Maximum AC input current |
50 A |
| DC input voltage range |
38 – 60 V |
| Output |
230 V ± 2 %, 50 Hz ± 0.1 % (adjustable to 60 Hz) |
| Cont. output power at 25 °C / 40 °C / 65 °C |
6 kW / 5.7 kW / 4.6 kW |
| Time-limited power 1 / 2 (cold start) |
6.5 kW / 4 h; 8 kW / 1 h |
| Max. apparent feed-in power |
6 kW |
| Peak power |
11 kW / 1 min |
| Maximum efficiency |
96 % |
| Zero-load power / AES / Search mode |
28 W / 18 W / 8 W |
| AC input voltage / frequency |
187 – 265 V; 45 – 65 Hz |
| Charge voltage absorption / float / storage |
57.6 V / 55.2 V / 52.8 V |
| Max. battery charge current at 25 °C / 40 °C |
100 A / 95 A |
| Battery temperature sensor |
Optional (Victron order number ASS000001000) |
| Compatible battery chemistries |
Lithium, lead-acid, zinc-bromine and more (charger must be configured to the battery manufacturer’s specification) |
| Auxiliary output |
Yes (32 A) |
| Interfaces |
BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| External AC current sensor (optional) |
100 A |
| VE.Bus communication port |
Yes, for parallel and three-phase operation, remote monitoring and system integration |
| General-purpose communication port |
Yes, 2× |
| Remote on-off |
Yes |
| Operating temperature / humidity / max. altitude |
−40 °C to +65 °C (fan-assisted cooling); max 95 %; 2000 m |
| Material & colour |
Steel, blue RAL 5012 |
| Protection category |
IP21 |
| Battery connection |
M8 bolts |
| 230 V AC connection |
Screw terminals 13 mm² (6 AWG) |
| Weight |
29 kg |
| Dimensions (h × w × d) |
644 × 320 × 150 mm |
| Safety |
EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
