Description
The Victron MultiPlus-II 48/8000/110-100 is an 8kVA single-phase 48V inverter/charger with ESS functionality, from the Victron MultiPlus-II range, designed for backup, off-grid and grid-connected solar storage systems in South Africa.
- IP22 protection, indoor installation only
- Continuous output: 8000VA / 6400W at 25°C (5500W at 40°C, 4000W at 65°C)
- Peak power: 15000W | Output 230V ±2%, 50Hz
- Max apparent feed-in power: 8000VA
- Battery input voltage range: 38-66V (48V)
- Max battery charge current: 110A | Absorption 57.6V, float 55.2V
- Transfer switch 100A | Max AC input current 100A
- AC input 187-265V, 45-65Hz | No-break transfer (<20ms)
- PowerControl and PowerAssist to boost grid or generator capacity
- Second AC output live only when AC input is present
- Built-in anti-islanding | ESS (Energy Storage System) support | external current sensor 50A/100A optional
- Compatible with solar charge controllers and grid-tie inverters (AC coupling)
- Three-phase configuration supported | parallel operation not available on the 8k model
- Max efficiency 95% | Zero-load power 29W (19W AES, 3W search)
- Monitoring and control via Cerbo GX / GX Touch and VRM portal | VE.Bus
- Operating temperature -40 to +65°C (fan assisted) | Weight: 42kg
- 5-year manufacturer warranty
Official Datasheet: Victron MultiPlus-II Datasheet
Official Product Page: Victron MultiPlus-II
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.

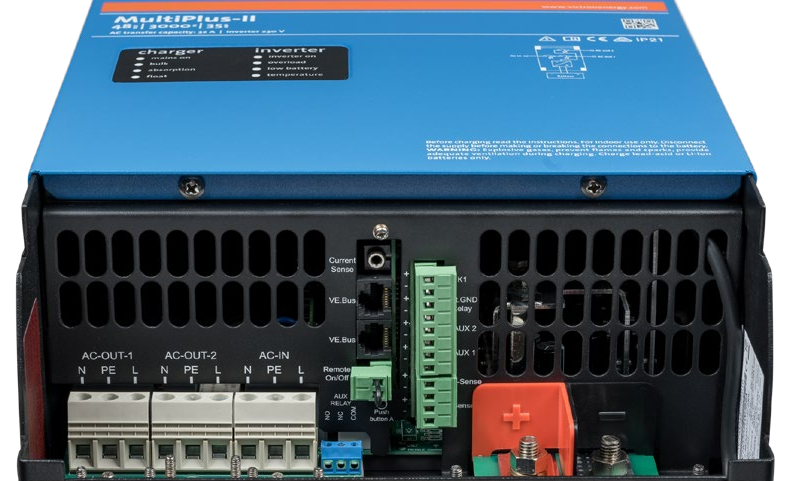

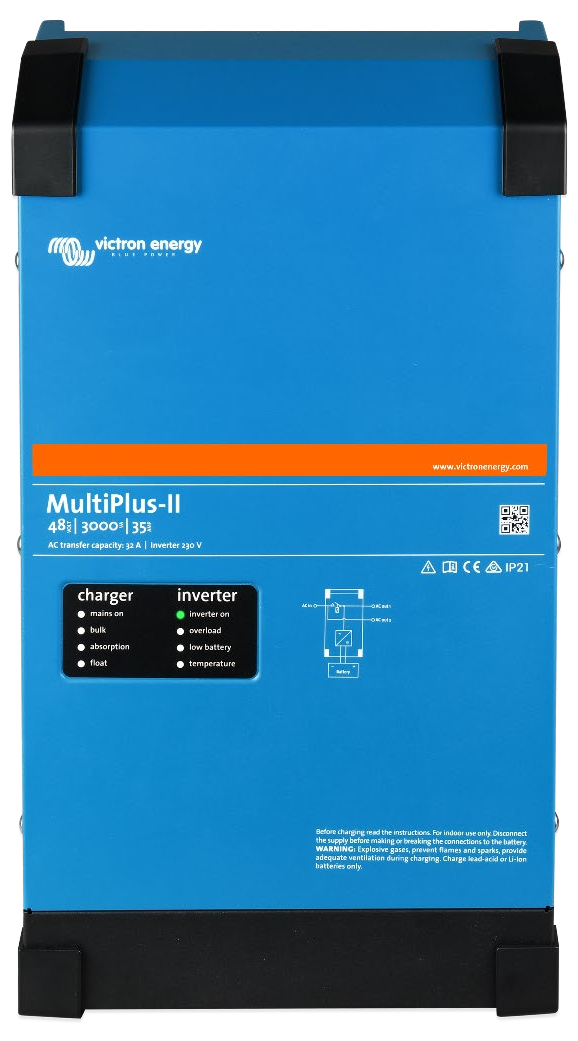

Please note: the image is for illustration purposes only. The actual product may not look exactly like the picture.
