Description
The Victron Quattro 48/10000/140-100/100 is a 10kVA single-phase 48V inverter/charger with two AC inputs and an integrated transfer switch, from the Victron Quattro range, designed for backup, off-grid and generator-assisted systems in South Africa.
- IP21 protection, indoor installation only
- Continuous output: 10000VA / 8000W at 25°C (6500W at 40°C, 4500W at 65°C)
- Peak power: 20000W
- Battery input voltage range: 38-66V (48V)
- House battery charge current: 140A
- Two AC inputs (100A / 100A) with integrated transfer switch
- AC input 187-265V, 45-65Hz, power factor 1
- PowerControl and PowerAssist with a current limit on each AC input
- Second AC output live only when AC input is present
- Up to 6 units in parallel | three-phase configuration supported
- Max efficiency 96%
- VE.Bus communication port for parallel/three-phase operation, remote monitoring and system integration
- Configurable via VE.Bus Quick Configure / VEConfigure | VRM monitoring with a GX device
- Aluminium enclosure (blue RAL 5012)
- Operating temperature -40 to +65°C | Humidity max 95% non-condensing
- Dimensions (H x W x D): 470 x 350 x 280mm | Weight: 45kg
- 5-year manufacturer warranty
Official Datasheet: Victron Quattro 3-15kVA Datasheet
Official Product Page: Victron Quattro
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.

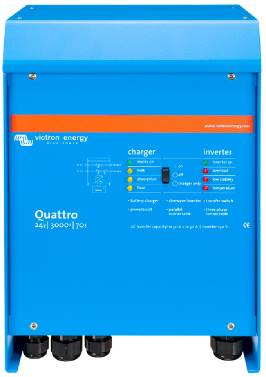

Please note: the image is for illustration purposes only. The actual product may not look exactly like the picture.
