| Official model |

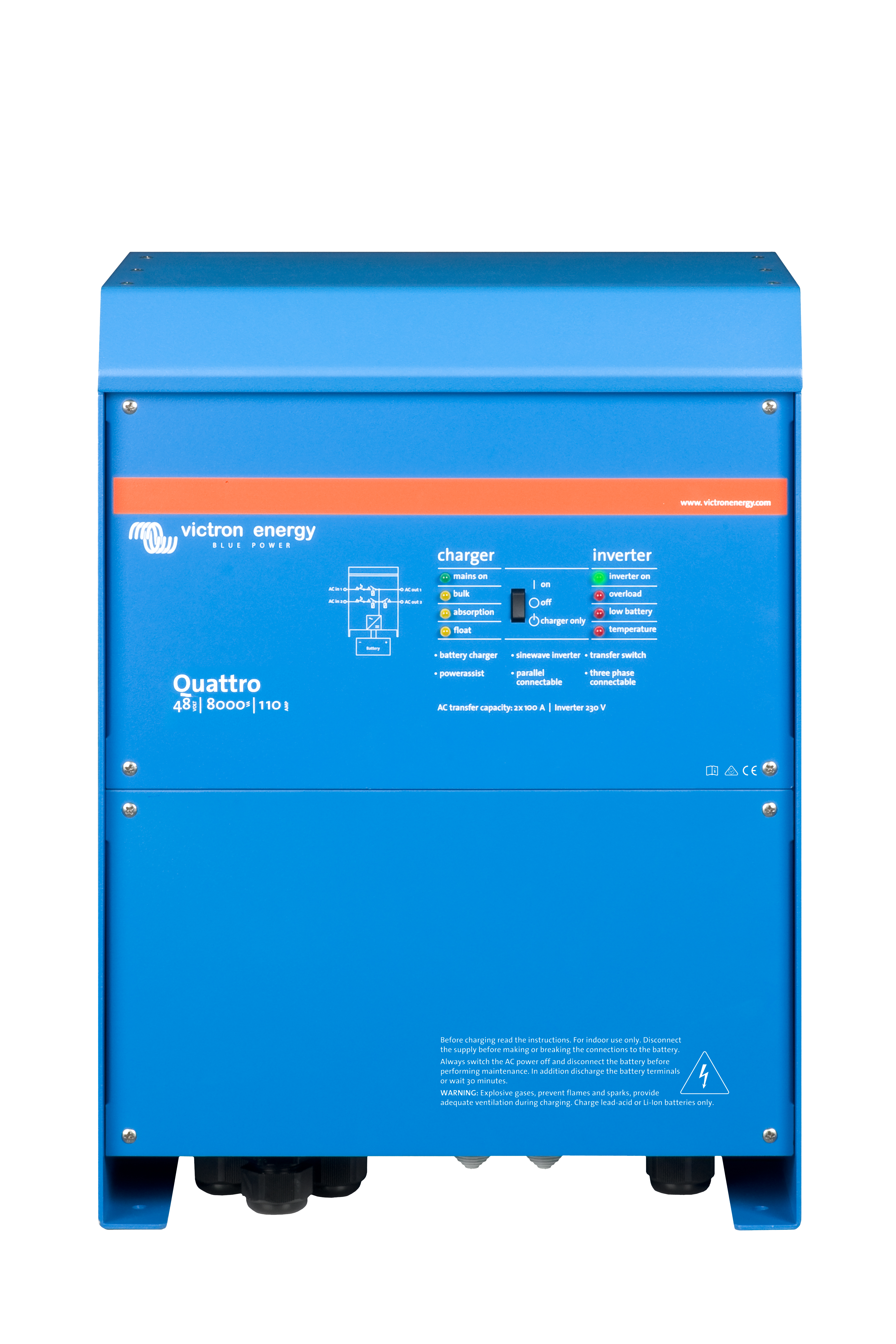

Quattro 48/8000/110-100/100 230V VE.Bus |
| Type |
Inverter/charger with two AC inputs and VE.Bus communication |
| PowerControl / PowerAssist / integrated transfer switch |
Yes / Yes / Yes |
| AC inputs (2×) |
187 – 250 VAC, 50/60 Hz, cos φ > 0.8 |
| Maximum feed-through current |
2 × 100 A |
| DC input voltage range |
38 – 60 V |
| Output |
230 VAC ± 2 %, 50 Hz ± 0.1 % (adjustable to 60 Hz) |
| Cont. output power at 25 °C (non-linear, crest factor 3:1) |
8000 VA / 6400 W |
| Cont. output power at 40 °C / 65 °C |
5500 W / 3600 W |
| Peak power |
16 000 W |
| Input current (A DC) |
188 A |
| Maximum continuous output current |
30 A |
| Maximum efficiency |
96% |
| Zero-load power / AES / Search mode |
60 W / 40 W / 15 W |
| Charge voltage absorption / float / storage |
57.6 V / 55.2 V / 52.8 V |
| Charge current house battery (up to 25 °C) |
110 A |
| Battery temperature sensor |
Not included with 48 V models (Victron order number ASS000001000) |
| Auxiliary output |
50 A; switches off when no external AC source is available |
| Programmable relay |
3× |
| VE.Bus communication port |
For parallel and three-phase operation, remote monitoring and system integration |
| General purpose com. port / remote on-off |
2× / Yes |
| Operating temperature / humidity / maximum altitude |
−20 °C to +60 °C; max 95 % non-condensing; 2000 m |
| Material & colour / protection category |
Aluminium (blue RAL 5012), IP20, pollution degree 2, OVC III |
| Battery connection |
Four M8 bolts (2 plus and 2 minus connections) |
| 230 VAC connection |
M6 bolts |
| Weight |
41 kg |
| Dimensions (h × w × d) |
470 × 350 × 280 mm |
| Safety |
EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
